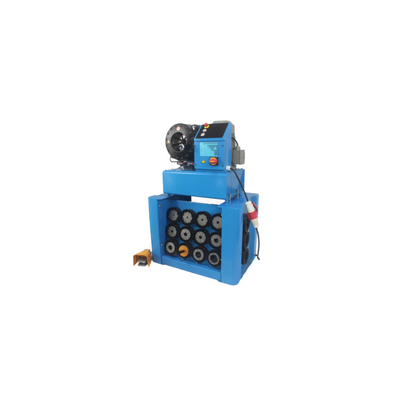

Crimp Hose Crimping Machine Dies Stretch 2inch 3"/4"/6"/8"/10" Hydraulic Hose Crimping Machine

1.0 Sets
MOQ
Crimp Hose Crimping Machine Dies Stretch 2inch 3"/4"/6"/8"/10" Hydraulic Hose Crimping Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Engine, Pump
Machine Type: Hose Crimping Machine
Voltage: 220V/380V
Dimension(L*W*H): 650*470*620mm
Weight: 290, 290KG
Warranty: 1 Year
Power (kW): 3
Key Selling Points: Easy to Operate
Showroom Location: None
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Model: JYC-P32
Color: Blue
Crimping range: 6-51mm
Application: Crimp Hose
Type: automatic
Crimping force: 320Ton
SYSTEM PRESSURE: 31.5mpa
Power: 3KW/4KW
After-sales Service Provided: Free spare parts
Βασικές πληροφορίες
Model Number: JYC-P32
Πληρωμής & Αποστολής Όροι
Packaging Details: standard wooden case for hose crimping machine hydraulic
Supply Ability: 100 Set/Sets per Month for Hose Crimping Machine
Περιγραφή προϊόντων
MACHINE  Description

Hydraulic hose crimping machine Application


Due to less wearing parts ,JYC-P32 Medel has the least down time.

The control panel has been re-designed with soft touch button commands for all the operations.

It is most user-friendly, safe & simple in operation.

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name
hose crimping machine
Machine model
JYC-P32
Machine type
hydraulic crimping tool
 Application
crimping hose
Crimping range
6-51mm(1/4--2 inch)
System pressure
31.5Mpa
Crimping force
3200kN
Operation mode
electrical
Dies set
13 sets
Die length
75mm
Dimension
650*470*620mm
Weight
290KG
Voltage
220V/380V
Power
3KW/4KW
Rated Flow
10ml/r
Prodection Class
IP54

P32 Hose Crimping Machine Features

High Efficiency                                            High Precision                                            Good Product Consistency

Low labor Intensity                                   Good Management                                     Simple In Operation

Detailed Images

Machine Parts

Name: Crimping machine head


Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance.

Machine Parts

Name: Crimping machine die sets

High quality

reliable

durable

High performance to price ratio

Professional

Related Products
Our Service
Our enterprise built up for 16 years! Made up of 10 years experienced professional R & D Worker and QC persons. Our hydraulic products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.Our hydraulic crimping machines get the CE certification. Our factory have advanced industrial production process to save expenses,and offer all our customers a good price to win in their market!We have the deep desire to cooperate with you, we are experienced and have the faith to make you satisfaction with our hydraulic products and service. We have customers in UK, US, Russia, Australia,UAE,Kenya,Bolivia,Philippines, etc.Email me or call me directly, we can't wait to see you!

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

*24x7 service

* Training how to install and use the machine

* Engineers available to service machinery overseas.

Certifications
Packing & Delivery
Packaging
Size
650(L) * 470 (W) * 620(H)
Weight
290KG



Packaging Details
Covering the machine with films,and package the machine with the starndard export wooden case.
The normal package is wooden box(Size: 670*490*640).
Before delivery,we will make sure the package is in good condition.
Packaging
Size
670 (L) * 490(W) * 640 (H)
Weight
300KG



Packaging Details
The normal package is wooden box(Size: 670*490*640).We could custom package according to customer request.We will do every effort to make sure the machine protected to deliver to our customer's hands.
